Case Study
Roof Lift With Dormer

A stunning space created with a roof lift loft conversion and rear dormer combined.

This roof lift has created a huge master bedroom, with a walk through wardrobe/dressing area room and an modern but elegant ensuite. This was created by combining the a roof lift and a large rear dormer, and build up with side gables to meet the new roof line.

This property roof area, including external walls, is 7.25m wide by 9m deep. This created over 40 square metre of internal floor space including the staircase opening, which is only 2.5m2. Plus the couple also got 6m2 of eaves storage space behind the ashlar wall.

Roof Lift Loft Conversion Architectural Drawings & Plans

Milestone Lofts did not complete the architectural drawings for this project as we didn't get involved into late into the project lifecycle. The drawing are therefore all 2D, unlike those that we create which are all 3D drawings, or 3D virtual walkthroughs.


Roof Lift Loft Conversion Drawings

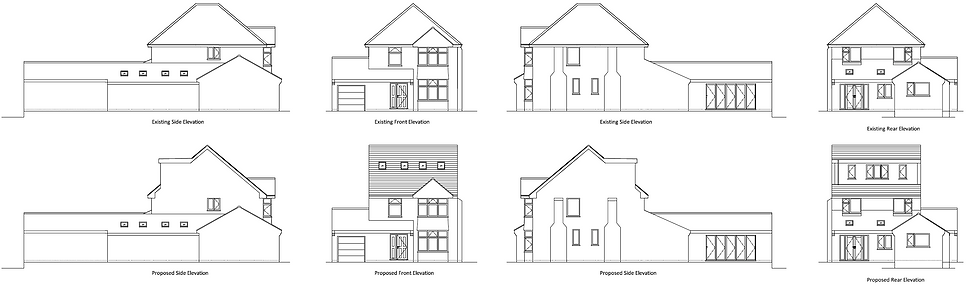

Before and after elevation drawings (above)

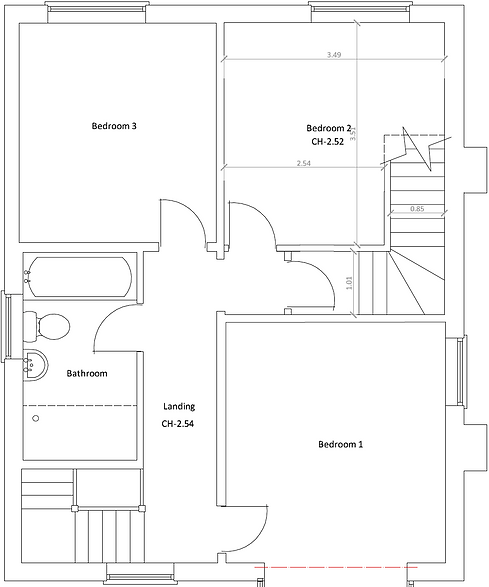

Planned 2nd floor and loft floor plan (below)


Get your loft conversion design started today...

Contact us today to find out how much space we can create for you. Every loft conversion or roof lift includes award winning 3D design and back with a 10 year guarantee.


Roof Lift Loft Conversion - Gallery

Some before, during and after images of this stunning roof lift conversion. It's only the images that truly show what can be done when you combine a roof lift and rear dormer.
